Plasma Power Supply

RF Power Supply - RF Generator

RF-3-XIII

■ 300 Watts @ 13.56Mhz

■ Lightweight design @ 19lbs.

■ Line input 110-240

■ 1/2 rack for space saving

■ User friendly controls

■ 7.5W x 5.5H x 15.5L

■ Output connector N type

■ 0-5.5 Vdc controls

RF-6-XIII

■ 600 Watts @ 13.56Mhz

■ Lightweight design @ 31lbs.

■ Line input 100-240 Vac

■ 1/2 rack for space saving

■ User friendly controls

■ 8.5W x 7.0H x 19.0L

■ Output connector N type

■ 0-5 Vdc controls

■ Hum, Ripple, Noise <45db

RF Power Supply - Matching Networks

AIM 500 AutoTuner

■ Built-in Controller for Auto-Tuning
■ Built-in Presets for easy ignition to tune radio
■ Requires +/- 15 Vdc for it's power source
■ Field testable and set-up friendly controls
■ Compatible with all existing RF Power Supplies
■ Optional DC Probe outlet
■ All functions of our dependable controller now inside
■ 15L x 9W x 5H
■ Cost Effective

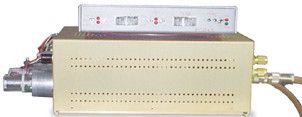

ATN-5 AutoTuner

■ Presets built in controller for easy Plasma Ignition.

■ Lightweight controller (2.5lbs).

■ Field testable and set-up friendly controls.

■ Compatible with all existing RF power supplies.

■ Accepts 110-240 Vac without tap changes.

■ OptionalDC probe output.

■ 500 watta @ 13.56MHhz.

■ Auto tuning at low cost.

■ We also have a manual version for further cost savings.

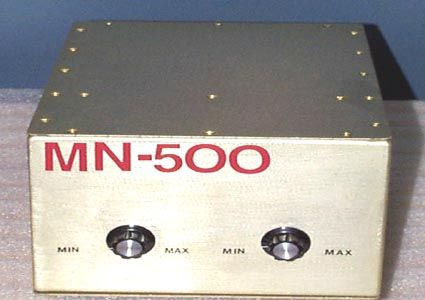

MN 500 (Manual Match)

■ 500 watts @ 15.36 Mhz

■ Low cost with wide impedance range

■ Works with any RF Generator model

■ Perfect for R&D Plasma applications

■ 8W x 12D x 5H

ATN-10 AutoTuner

■ Presets built in controller for easy Plasma Ignition.

■ Lightweight controller (3lbs).

■ Accepts 110-240 Vac without tap changes.

■ DC probe capabilities built-in.

■ Handles 1000 watts continuously.

■ Can be used with all types of RF Generators.

■ Field test and setup Friendly.

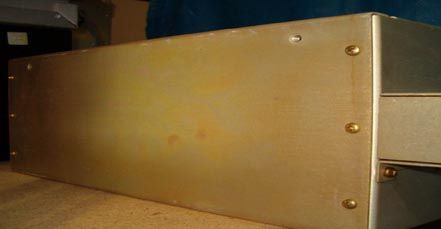

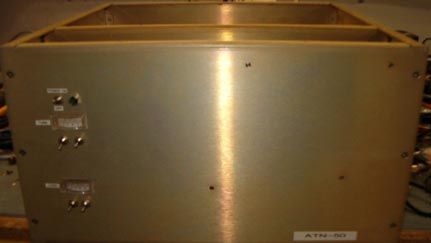

ATN-20/30 ATN-50/100

ATN-20/30/50/100 Auto Tuner

■ Lightweight Controller (2.5 lbs.)
■ Accepts 110-240 Vac without tap changes
■ Field testable and set-up friendly controls
■ Compatible with all existing RF Power Supplies
■ Optional DC Probe output
■ 2-3-5-10 Kw models in the same configuration
■ 13.56 and 27.12Mhz available
